Horizontal & Bulkhead Windlasses
When the locker is shallow, the deck is thick or below-deck access is tight, Maxwell's horizontal windlasses put the motor and gearbox in a watertight case on deck — and the BH8 hides the whole windlass on a bulkhead inside the locker. Full automatic rope/chain handling with free fall, from 4.5 to 20 m boats.

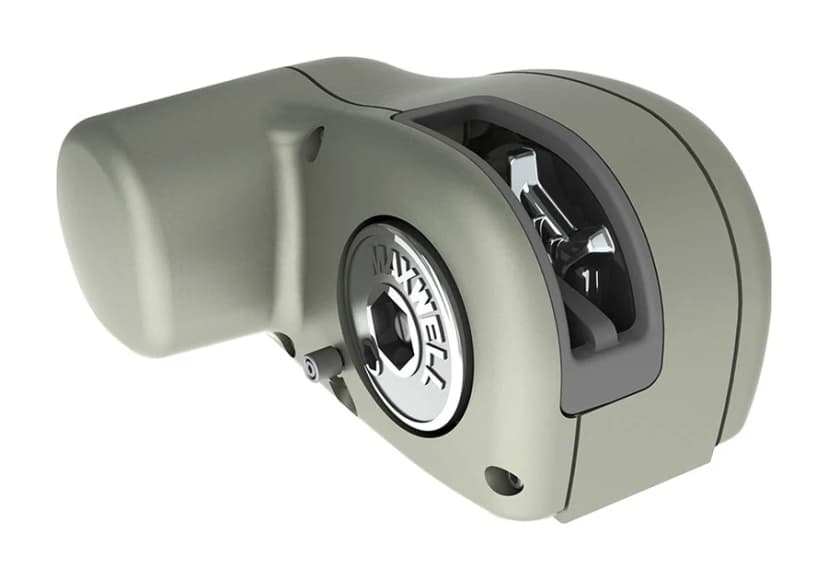

HRCFF & HRC10 — automatic rope/chain, horizontal
The compact HRCFF brings Maxwell's automatic free-fall technology to a hard-anodised, die-cast case that bolts straight down — with the rope-to-chain transition handled by the proven pressure-arm system inside. The HRC10 steps up to 850 kg pull with a wrap-around chainwheel using more than 90° of engagement. The HWC3500 handles chain-only rodes on vessels to 20 m.
| Model | Max pull | Static hold | Chain | Rope | Motor | Voltage | Boats (light / heavy)* |
|---|---|---|---|---|---|---|---|
| HRCFF6 | 410 kg | 700 kg | 6 mm | 12 mm | 600 W | 12 V | 4.5–7.6 m / 4.5–6.1 m |
| HRCFF7 | 410 kg | 700 kg | 7 mm | 12 mm | 600 W | 12 V | 6.1–9.2 m / 4.5–7.6 m |
| HRCFF8 | 410 kg | 700 kg | 8 mm | 14 mm | 600 W | 12/24 V | 7.6–11 m / 6.1–9.2 m |
| HRC10-8Hyd. avail. | 700 kg | 1500 kg | 8 mm | 14–16 mm | 1000 W | 12/24/48 V | 9.2–12.2 m / 7.6–10.7 m |
| HRC10-10Hyd. avail. | 850 kg | 1500 kg | 10 mm | 16 mm | 1200 W | 12/24/48 V | 10.7–15.3 m / 9.2–13.7 m |
| HWC3500Hyd. avail. | 1590 kg | 2200 kg | 10/12/13 mm | Chain only | 1200 W | 12/24/48 V | 15.3–20.8 m / 13.7–19.2 m |
Free fall, on deck
The HRCFF free-falls from the helm or footswitch, disengaging automatically on power-up; the HRC10 offers manual free fall via its cone clutch.
Minimal locker demands
With the works above deck, only the rode fall matters below — easy on pocket cruisers and aluminium boats.
Routine service made simple
Two-piece watertight cases open on deck — no contortions in the chain locker for maintenance.
BH8 — the hidden windlass
New from Maxwell: the BH8 mounts on a bulkhead inside the anchor locker, leaving the foredeck completely clean. A quick bracket flip adapts it to bow or stern installations, the Wave Design™ chainwheel handles rope/chain or all-chain rodes, and free-fall deployment is automatic. Up to 900 kg of pull from a 14 kg unit.
| Model | Max pull | Static hold | Chain | Rope | Motor | Voltage | Boats (light / heavy)* |
|---|---|---|---|---|---|---|---|
| BH8-6 | 410 kg | 1200 kg | 6 mm | 12 mm | 600 W | 12/24 V | 4.5–9.2 m / 4.5–7.6 m |
| BH8-7 | 410 kg | 1200 kg | 7 mm | 12 mm | 600 W | 12/24 V | 4.5–9.2 m / 4.5–7.6 m |
| BH8-8 | 900 kg | 1200 kg | 8 mm | 14–16 mm | 1000 W | 12/24/48 V | 7–11 m / 6.1–9.2 m |
Get a horizontal windlass quote
Tell us about your locker and deck layout — we'll confirm the right configuration and quote the complete kit with matched chainwheel.
Luxfords is an authorised Maxwell distributor — we size the complete system (windlass, anchor, chain, rope, stopper and controls), supply genuine parts and back it with Maxwell's three-year leisure warranty.
