MAXSET & MAXCLAW Anchors
The MAXSET refines the proven plough/delta design for fast, reliable setting; the MAXCLAW carries the North Sea claw pedigree for grip on mixed bottoms. Both come in mirror-polished AISI 316 stainless (MAXSET also in hot-dip galvanised), sized from 4 kg tenders to 40 kg cruisers — with self-launching bow rollers engineered to match.
Anchor sizing by boat length

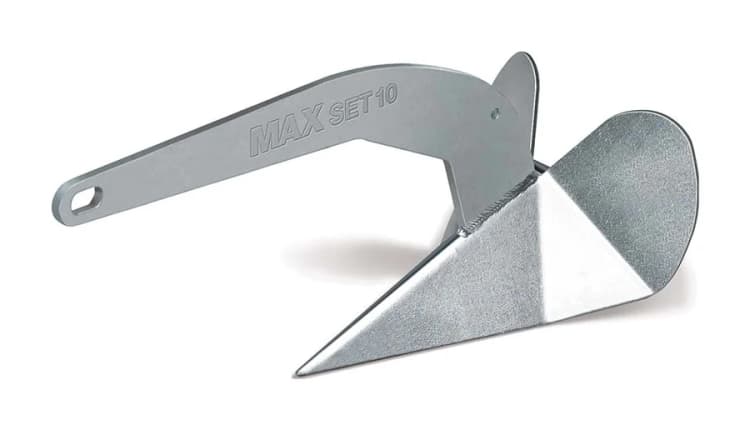

MAXSET (plough/delta) — stainless or galvanised
| Weight | Approx. boat length |
|---|---|
| 4 kg | 4–6 m |
| 6 kg | 5–8 m |
| 10 kg | 7–10.5 m |
| 16 kg | 9–11 m |
| 20 kg | 11–13 m |
| 25 kg | 12–15 m |
| 30 kg | 14–17 m |
| 40 kg | 16–18 m |
MAXCLAW (claw) — stainless
| Weight | Approx. boat length |
|---|---|
| 5 kg | 4–7 m |
| 7.5 kg | 5–8.5 m |
| 10 kg | 7–10.5 m |
| 15 kg | 9–13 m |
| 20 kg | 11–14.5 m |
| 30 kg | 13–16 m |
| 40 kg | 15–17 m |
Boat-length bands are Maxwell's published guidance. Heavy displacement, high windage or exposed cruising grounds justify one size up — an anchor one size too big is cheap insurance.

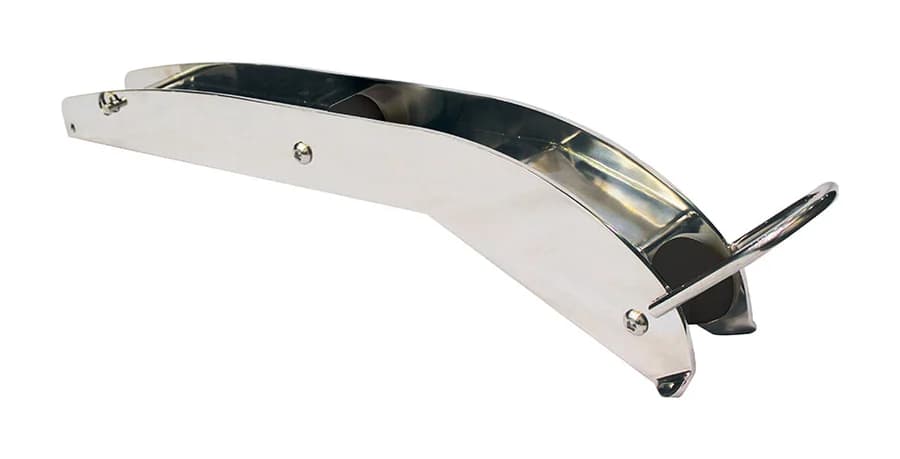

Self-launching bow rollers to match
The MAXSET bow roller is designed so MAXSET, MAXCLAW and similar anchors self-launch on deployment and pull up snug on retrieval — no rattling around under way. Every anchor weight maps to a matched roller in satin or polished stainless, with hinged, fixed, extendable and anchor-loop versions for different bow shapes, plus an extending roller that deploys the anchor clear of plumb bows.
- Matched rollers for every MAXSET/MAXCLAW weight, 4–40 kg
- Hinged, fixed and extendable hinged versions
- Retractable anchor arm available for clean superyacht-style bows (10–60 kg anchors)
- All AISI 316 stainless, mirror or satin finish
Get the right anchor, first time
Tell us your boat and where you anchor — we'll size the anchor and matched bow roller, and quote them with the chain and windlass if you're doing the whole system.
Luxfords is an authorised Maxwell distributor — we size the complete system (windlass, anchor, chain, rope, stopper and controls), supply genuine parts and back it with Maxwell's three-year leisure warranty.
