Capstans
Simple, low-cost anchor recovery on smaller boats; docking muscle and line hauling on bigger ones. Maxwell capstans run from the 5.7 kg AnchorMax to the flush-deck Retractable Vertical Capstan that mirrors into the deck when not in use — all with snag-free fluted AISI 316 drums that haul from any direction.
AnchorMax
An extremely high power-to-weight vertical capstan for boats 5–10 m (max 4 t) — 386 kg of pull from a 5.7 kg unit that fits without dismantling, and doubles as a pot hauler or davit winch.

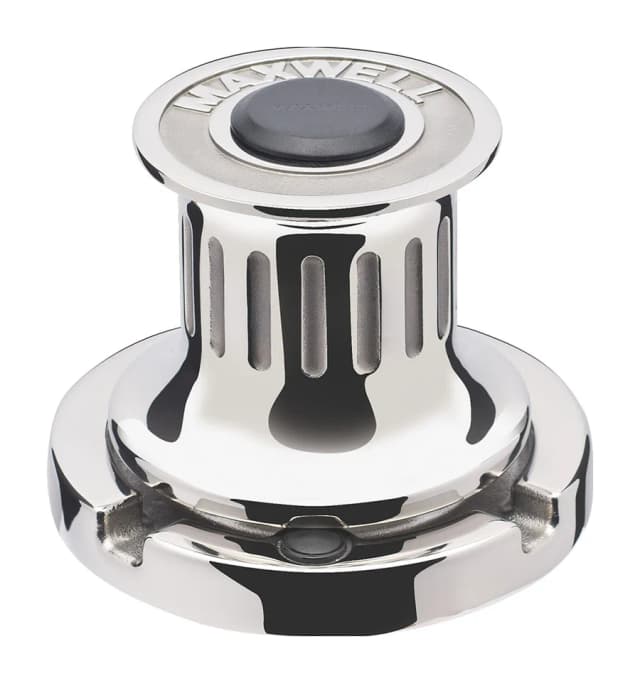

VC1000
The fluted stainless classic: 700 kg pull for anchor recovery on smaller boats, docking-line muscle on larger craft, with gearbox/motor positions for virtually any installation — hydraulic available.
RVC retractable
A mirror-polished drum that sits flush with the deck until you need it. One button raises it, reverse retracts it — 680 kg (RVC1500) to 1,135 kg (RVC2500), with 4500 and 6000 versions available.
Stern capstan rule: when pairing a stern capstan with your anchor windlass, Maxwell uses one size smaller drive — or at minimum 50% of the windlass's pull rating. We'll match the pair for you.
Capstan range
| Model | Max pull | Static hold | Chain | Motor | Voltage | Boats (light / heavy)* |
|---|---|---|---|---|---|---|
| AnchorMax | 386 kg | — | mm | 500 W | 12/24 V | 5–10 m / 4.6–9.1 m |
| VC1000Hyd. avail. | 700 kg | — | mm | 1000 W | 12/24/48 V | 9.9–12.9 m / 8.3–11.5 m |
| RVC1500Hyd. avail. | 680 kg | 1750 kg | mm | 1200 W | 12/24/48 V | 10.7–16.2 m / 9.2–14.7 m |
| RVC2500Hyd. avail. | 1135 kg | 2200 kg | mm | 1500/2000 W | 12/24 V / Hyd | 13.8–18.7 m / 12.2–17.2 m |
Capstans handle rope only (no chainwheel). For automatic chain handling see the vertical windlass range.
Get a capstan quote
Anchor recovery, docking assistance or line hauling — tell us the job and we'll size the capstan, solenoid and switching to match.
Luxfords is an authorised Maxwell distributor — we size the complete system (windlass, anchor, chain, rope, stopper and controls), supply genuine parts and back it with Maxwell's three-year leisure warranty.
