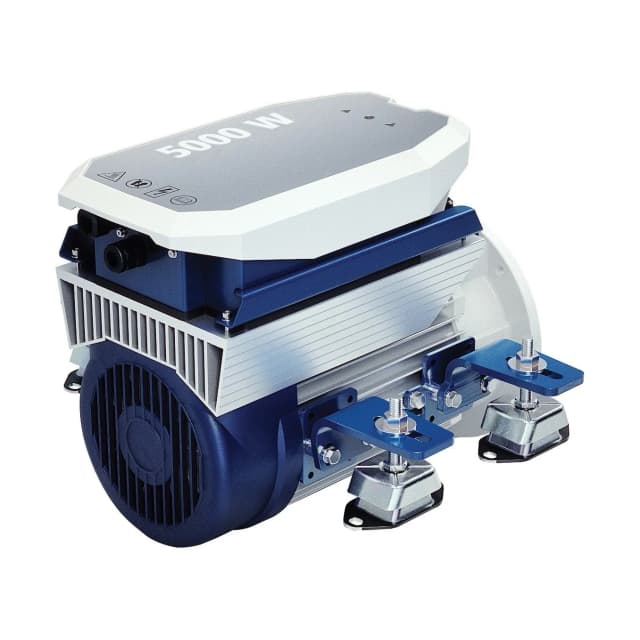

Vetus E-LINE Air 5kW 24V
5 kW continuous · 7.9 kW peak
Entry-level 24V electric propulsion for small sailboats and tenders. Air-cooled with active electronic braking and integrated thrust bearing.
Specifications
Continuous Power
5 kW
Peak Power
7.9 kW
Voltage
24V DC
Weight
28 kg
Cooling
Air cooled
About the E-LINE Air 5kW 24V
The Vetus E-LINE Air 5kW 24V is the most accessible entry point to electric marine propulsion, operating on a simple 24V DC system. With a continuous output of 5 kW and peak power of 7.9 kW, this air-cooled motor provides clean, silent propulsion for small sailboats, tenders, and day boats.
The active air cooling system maintains stable operating temperatures without the complexity of liquid cooling circuits, while the active electronic braking provides rapid deceleration and precise control. The integrated thrust bearing and 4-inch mounting flange (compatible with Combiflex 12 and Bullflex type 1) ensure straightforward installation.
The 24V system is ideal for vessels with existing 24V electrical systems, simplifying the integration process. Luxfords can advise on battery sizing, charging systems, and the complete electrical configuration needed for a successful installation.
Key Features
Included in Package
- Active air cooling system
- Active electronic braking
- Integrated thrust bearing
- Swap & Go motor brackets (EMX65)
- Key switch (MPE1KB) with anti-theft
- Monitoring panel (MPE1MBV)
- 48V to 12V DC converter
