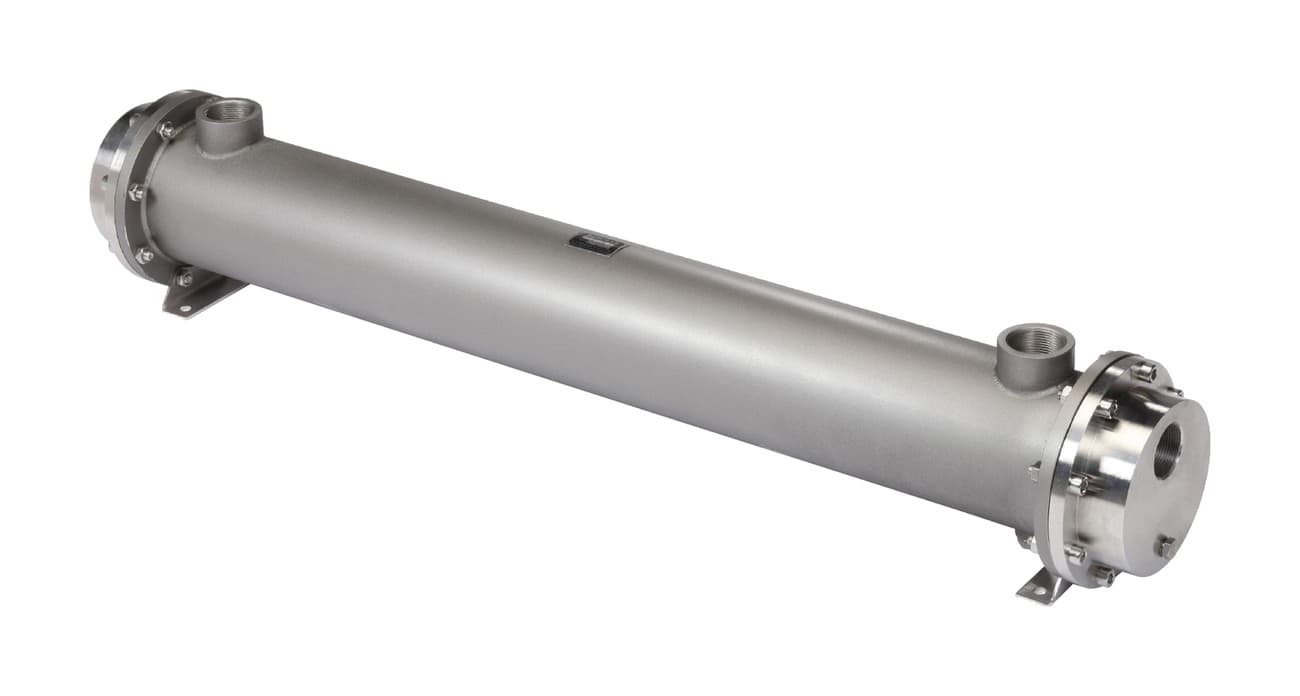

Stainless Steel Heat Exchangers
A quality solution for aggressive fluids
Bowman stainless steel shell-and-tube heat exchangers are purpose-built for the toughest cooling duties — where contaminated coolants or aggressive fluids like chemicals, synthetic oils and refrigerants would defeat lesser materials. Manufactured throughout in 316L stainless steel, handling heat loads from 9kW to over 800kW.
Built for the Fluids That Punish Ordinary Coolers
When the cooling medium is dirty or the process fluid is corrosive, standard heat exchangers simply won't last. Bowman's stainless steel shell-and-tube units are engineered specifically for these conditions, cooling aggressive chemicals, synthetic oils, refrigerants and contaminated water reliably where other grades of material would fail.
Every unit is constructed entirely from 316L stainless steel, including a 9.5mm tube stack fixed to the outer body and paired with specially designed baffles for efficient, turbulent heat transfer. The compact shell-and-tube format integrates easily into existing process pipework, and units are available in single or 3-pass configurations. Maximum working pressure is 20 bar, with maximum temperatures of 200°C on oil and 110°C on water.
Proven across food and beverage, biomass energy, oil and gas, paper and pulp, pharmaceutical and petrochemical industries, these exchangers are UK manufactured to ISO 9001:2015. As Bowman's Australian distributor, Luxfords backs every unit with qualified engineers, computer-aided selection and maintenance workshop support on both coasts.
Why Choose Bowman Stainless Steel Heat Exchangers?
316L Stainless Throughout
Built entirely from corrosion-resistant 316L stainless steel for long service life with aggressive and contaminated fluids.
Wide Performance Range
21 standard sizes cover heat loads from 9kW to over 838kW with water flows from 120 to more than 1000 l/min.
Maintain Without Draining
A fixed tube stack and removable end covers let you clean the tubes without draining the primary circuit.
Single or 3-Pass Options
Specific single and 3-pass models are available to precisely match your flow and cooling duty.
Model Range & Performance
Typical 3-pass performance cooling ISO 37 oil or water to a 50°C outlet with cooling water at 25°C inlet. A general guide — contact Luxfords for single-pass figures.
| Model | Oil Cooling Duty | Water Cooling Duty | Weight |
|---|---|---|---|
| SB4507-2 | 9 kW | 42 kW | 11 kg |
| SB4507-6 | 22 kW | 92 kW | 20 kg |
| SC4508-4 | 22 kW | 111 kW | 21 kg |
| SC4508-8 | 48 kW | 200 kW | 38 kg |
| SD4509-4 | 52 kW | 245 kW | 30 kg |
| SD4509-8 | 133 kW | 495 kW | 62 kg |
| SE4510-4 | 66 kW | 301 kW | 44 kg |
| SE4510-9 | 196 kW | 642 kW | 104 kg |
| SF4511-4 | 140 kW | 600 kW | 79 kg |
| SF4511-9 | 536 kW | 1230 kW | 164 kg |
| SG4512-4 | 223 kW | 1020 kW | 114 kg |
| SG4512-9 | 871 kW | 2050 kW | 244 kg |
Selected sizes from the 21-model range shown. Maximum working pressure 20 bar; maximum temperatures 200°C (oil) / 110°C (water). Full performance and dimension tables are in the brochure.
316L Stainless Steel Construction
These heat exchangers are built from 316L stainless steel throughout the entire construction — shell, tube stack and end fittings — giving them the corrosion resistance needed for chemicals, synthetic oils, refrigerants and contaminated cooling media. The tube stack uses 9.5mm tube to maximise heat transfer surface area and thermal efficiency.
The use of 316L across every wetted component, combined with ISO 9001:2015 manufacturing, is what makes these units the right choice for demanding sectors such as chemical processing, paper and pulp, oil and gas, pharmaceutical and petrochemical industries where lesser materials would corrode or fail.
Correct Installation
The compact shell-and-tube design is easily integrated into existing process pipework. Correct model selection is critical to performance — Bowman's computer-aided selection software, run by Luxfords' qualified heat-transfer engineers, ensures the right unit is matched to your duty before installation.
Servicing & Parts
All models feature easily removable end covers that give direct access to the tubes for cleaning. Because the tube stack is fixed, all cleaning and maintenance can be performed without draining the primary circuit, minimising downtime. In Australia, Luxfords supports every Bowman unit with maintenance workshops on both coasts, plus genuine Bowman replacement parts.
Applications
Process Cooling
Bowman stainless units form part of a process cooling system for Siemens inverter drives at a UK power station, using river water.
Automotive Engine Testing
Specified for a major automotive testing company in China to meet demanding high-specification requirements.
Industrial Process Cleaning
A process cleaning facility built around a Bowman stainless exchanger was installed at a major UK baking group.
Get the Right Unit, First Time
Computer-aided selection software matches the correct exchanger to your application. To request a selection or quote, supply:
- Primary fluid details (water or oil properties)
- Primary fluid flow rate
- Required water or oil outlet temperature
- Heat to be dissipated
- Temperature and source of cooling water
Our qualified mechanical & heat-transfer engineers are here in Australia to help you select and specify the right unit.
